CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering

Operation power : 5kw

Dimensions : 3600*700*1300mm

Brand Name : Charmhigh

Model Number : CHM-PC6635

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T,Western Union

Supply Ability : 50 Per month

Delivery Time : 6-8 days

Packaging Details : wooden box

Heating zone quantity : upper6/down6

Start-up power : 24kw

Net weight : 400KG

With automatic rail : Yes

Cooling zone : 2

With PC control : Yes

Heating area : 2200*350mm

Price : $5200

Warm-up time : around 20 mins

Contact Now

CHM-PC6635 Rail + PC Control Lead-free Reflow Oven
2200*350mm 6 Temperature Zones Soldering Machine
Product Overview
Full automatic rail reflow oven with PC control featuring 6 temperature zones (up6+down6). This lead-free SMT reflow soldering machine is designed for precision soldering applications with a 2200*350mm working area and 5KW power capacity.
Technical Specifications
Parameter Specification
Model PC6635 (PC, up6+down6, 350mm width)
Heating Zones Up6 + Down6
Heating Length 2200mm
Cooling Zones 2
Max PCB Width Mesh width 350mm, Rail adjustable 250mm
Conveyor Height Mesh 880±20mm
Conveyor Speed 0-2000mm/min
Power Supply 5 wires 380V 50/60Hz
Startup Power 24KW
Operating Power Approx. 5-6KW
Control System Industrial PC + monitor
Warm-up Time Around 20 minutes
Temperature Range Room Temperature - 350℃
Temperature Control Precision ±1℃
Temperature Distribution Error ±3℃
Net Weight Approx. 400kg
Dimensions (L*W*H) 3600*700*1430mm
Key Features
  • Patented heating wire technology with independent circulating air structure for high thermal efficiency
  • Dedicated high-temperature motor from Taiwan San Yue for balanced hot air distribution
  • Unique air duct design with imported snail shell air circulation and three-layer air distribution
  • Two forced cooling zones with cooling air temperature reaching as low as 5°C
  • Suitable for adjusting temperature curves of various models with dual or triple welding zone configurations
  • Dedicated transport guide rails made of high-temperature resistant aluminum alloy
  • Variable frequency speed control with imported Japanese Dongchuan motors
  • Industrial computer control with LCD monitor and Windows 10 operating system
  • Uninterruptible power supply (UPS) function to prevent PCB damage during power outages
  • All electrical components made of imported parts with shielded signal lines
Product Images

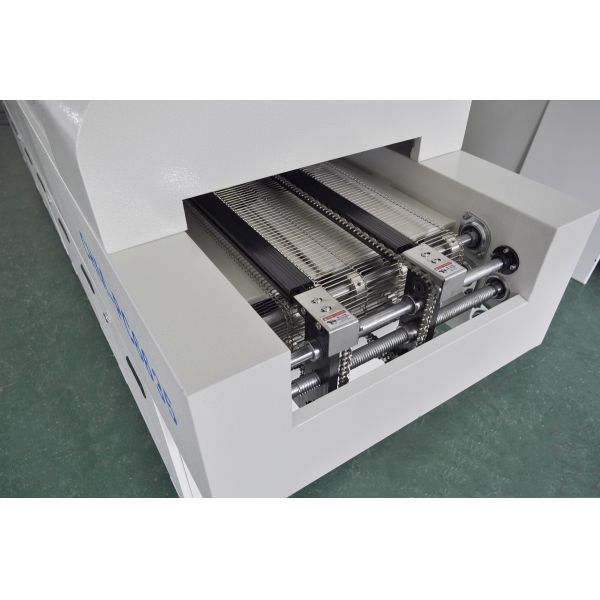

CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
Recommended SMT Production Line
  1. PCB loader
  2. E6 solder paste printer
  3. PCB conveyor
  4. CHM551P pick and place machine - two units
  5. PCB conveyor
  6. PC6635 reflow oven with automatic rail+PC
  7. PCB unloader
CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
Warranty & Support
Complete machine warranty: 1 year from purchase date with lifetime service
We provide spare parts, factory direct supply, and reliable technical support
Online Q/A and troubleshooting support with one-to-one after-sales service
Each machine 100% tested before shipment
Technical Support Contact
Kimi Liu
WhatsApp & Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube Channel: @KimiLiuCharmhigh
For more information and videos, please contact us by email. We respond promptly.
